Getting started with MPIThemes

Source: vignettes/articles/MPIThemes.Rmd

Installation

To compile PDF documents with R, you must have Pandoc, LaTeX, and a few other packages installed.

  1. Pandoc: Pandoc is already installed if you have a recent version of RStudio. There’s no need to be concerned if you’re unfamiliar with pandoc.

  2. XeLatex: The pdf RMarkdown templates compile with XeLatex. You will need to install some version of XeLatex. If you do not have one, there is a simple way in R. Tinytex is A lightweight LaTeX distribution that is sufficient for compiling pdf templates. To install the tinytex package and a working version of LaTeX run these commands:

install.packages("tinytex")
tinytex::install_tinytex()

The MPITheme package requires additional LaTeX dependencies that tinytex does not install by default. If you are online, these dependencies will be installed automatically.

  1. Install X11: X11 is no longer included with Mac, but X11 server and client libraries are available from the XQuartz project. For more information see CRAN instructions.

  2. Install Fonts: Before render templates, Univers and FontAesome fonts must be installed on your machine.

  3. MPITheme: Install the MPITheme package from GitHub. This package is not (yet) available on CRAN.

if(!require(devtools)) install.packages("devtools")
devtools::install_github("lcreteig/MPIThemes")

After installing the package, you may need to restart RStudio in order to add new templates to Rstudio.

Create Report

Follow these simple steps to create the First Report.:

1: In RStudio menu, go to File > New File > R Markdown > From Template.

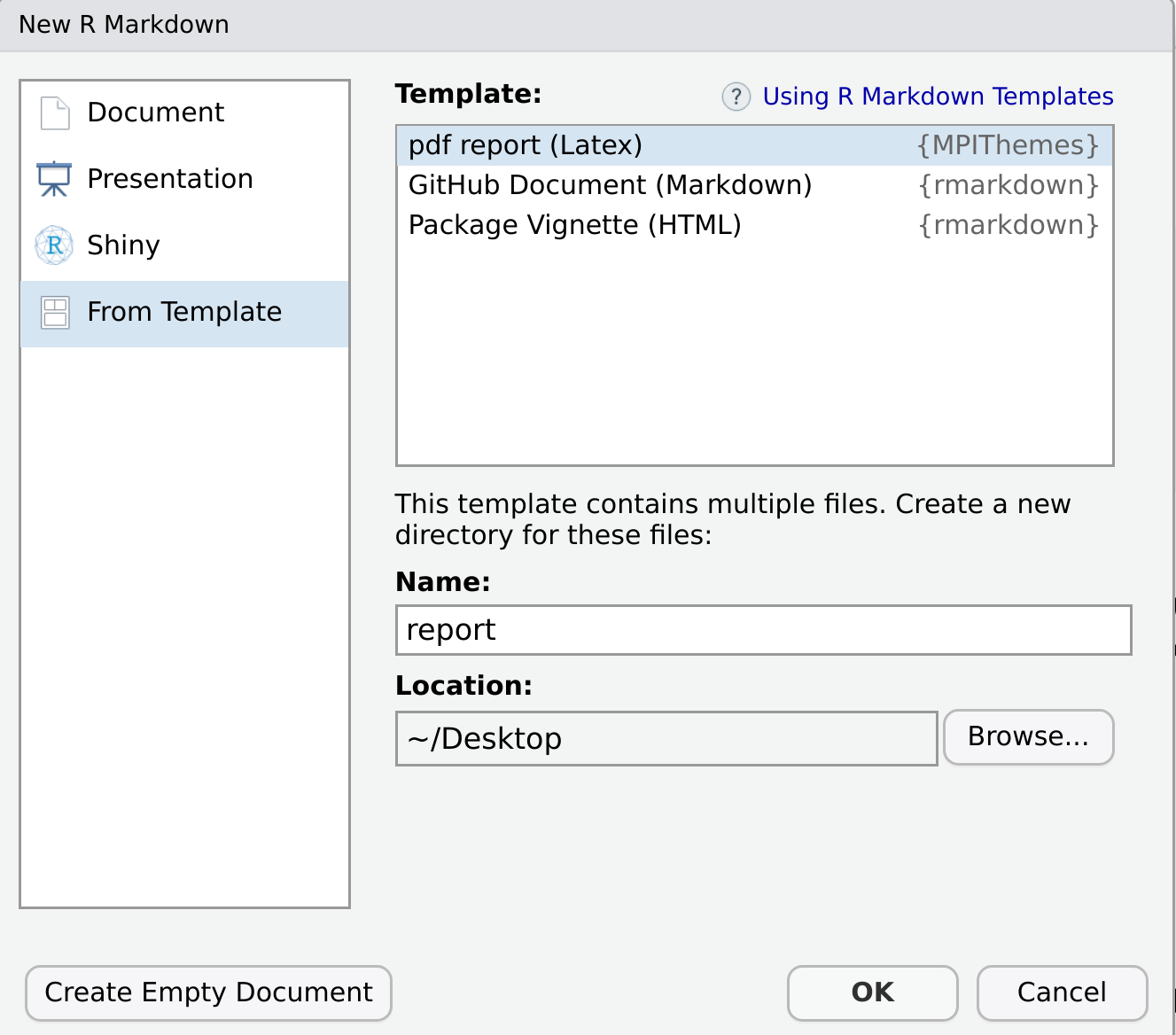

2: Select the pdf report template from the list, Then set the name and directory location and finally click OK. In a location directory, a Rmd file and a project structure will be created.

3: Knit the document by clicking on the Knit icon in the top bar of the Rstudio editor or its better to use keyboard shortcut for knitr, command + Shift + K on a Mac, or Ctrl + Shift + K on Linux and Windows.

4: Your document will automatically include default YAML headers

---
title: Statistical analysis of behavioral data
date: "14 November, 2021"
author: [Ahmad Ehyaei, Sara Ershadmanesh]
affiliation: Max Planck Institute for Biological Cybernetics
location: Tübingen
titlepage: true
toc: true
content-has-page: true
logo-primary: src/icon/MPILogoGray.eps
logo-secondary: src/icon/MPIBCWhite.eps
output:
  MPIThemes::latex_report
---

Fill in these YAML options with your information. There are plenty of other YAML options; see the PDF Report Template Customization article.

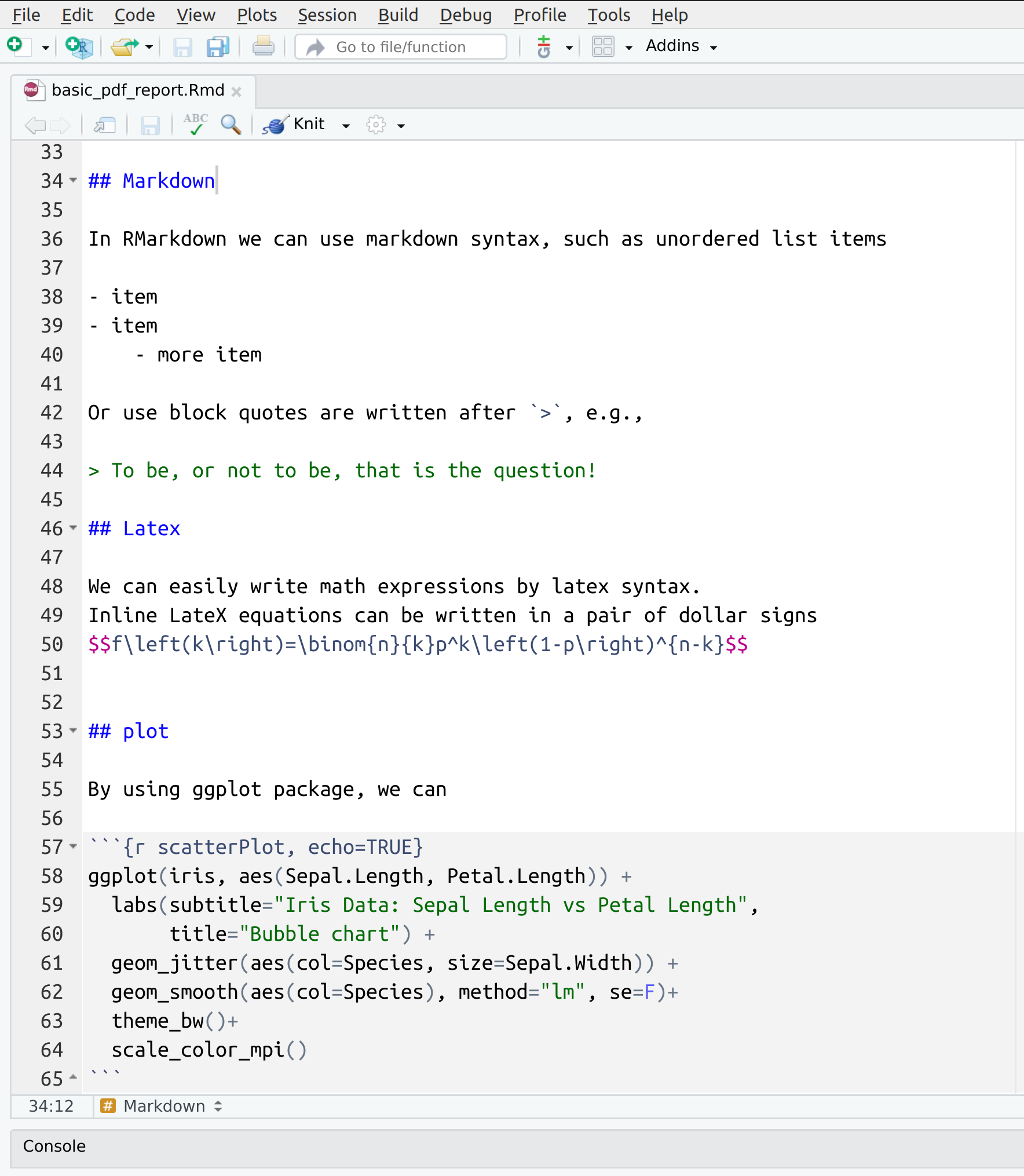

5: Fill in your report’s content. For a pdf template, you can use the markdown command or tex.

6: Knit the Rmd file and see result!.
